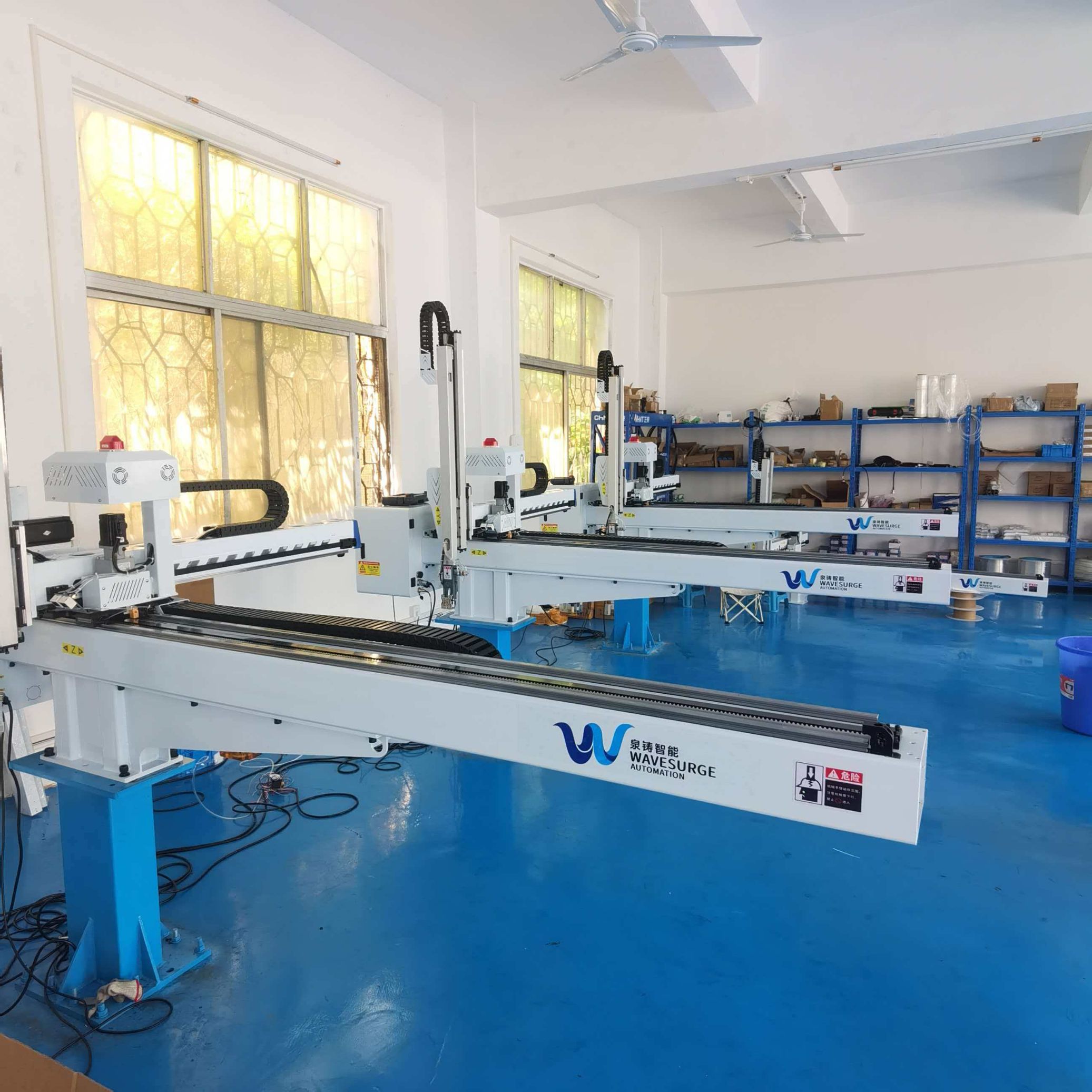

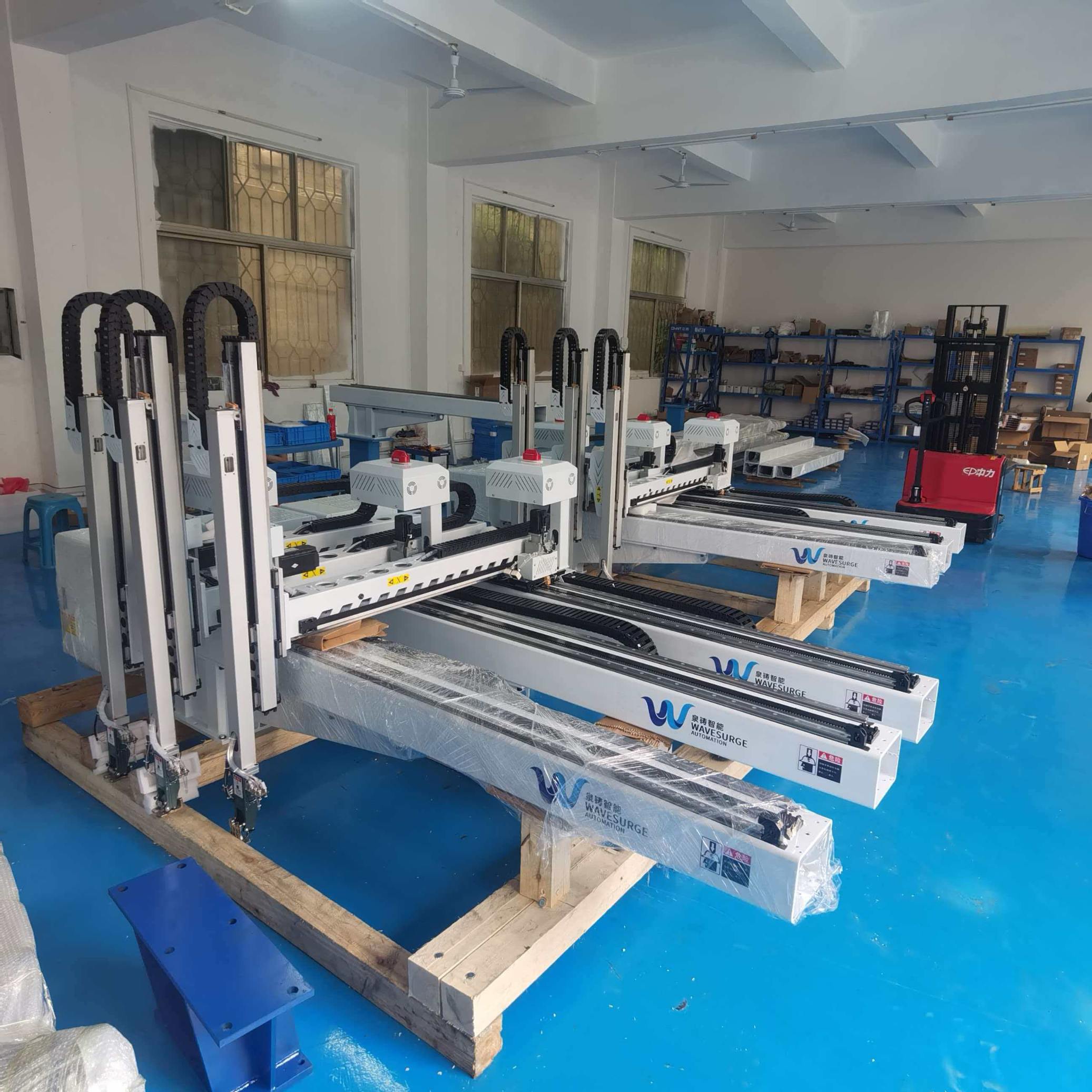

Open Type Telescopic High Speed Robot Arm

One-stop service: After-sales services for both the machine and the auto-packing cutlery system are handled simultaneously.This eliminates the traditional hassles of coordination between multiple parties.

Our simple and efficient after-sales service ensures worry-free machine operation.Theauto-packing cutlery system is deeply integrated with the injection molding machine, eliminating the need for commissioning and installation issues.Each project undergoes a pre-shipment test to ensure that the machine's products meet qualified standards before delivery.And if needed we will send you enginner to trainning your team.

MODEL	CLAMPING FORCE (TON)	TRAVERSE STROKE (MM)	CROSSWISE STROKE (MM)	VERTICAL STROKE (MM)	TELESCOPIC TYPE	MAX LOAD (KG)	TAKE-OUT TIME (SEC)	ROBOT WEIGHT (KG)
WSE-900P	160-280	1400	500	900	/	3	0.5	180-200
WSE-1100P	280-380	1600	600	1100	Telescopic type	3	0.8	250-300
WSE-1300P	400-600	1700	850	1300	Telescopic type	8	1.2	300-350
WSE-1500P	650-800	2200	1100	1500	Telescopic type	15	3	350-400
WSE-1700P	800-1000	2600	1250	1700	Telescopic type	50	3.5	420-460
WSE-2000P	1200-1600	3200	1450	2000	Telescopic type	50	5	500-550

Machine Features

X, Y and Z axis are fully servo driven, B axis and C axis servo are optional.
The control system is controlled by CanOpen bus, and the
arms are convenient and efficient, not limited by space and
product's size.
Electric box design improves the whole system servo drive more stable and fast, robot debugging flexible and quick feedback.
Manual lubrication system is installed on the guide rail of the transverse part, which makes the lubrication and maintenance of the equipment more convenient of long .
Applicable to: large scale automobile fitting products, household appliance shell, logistics tray.

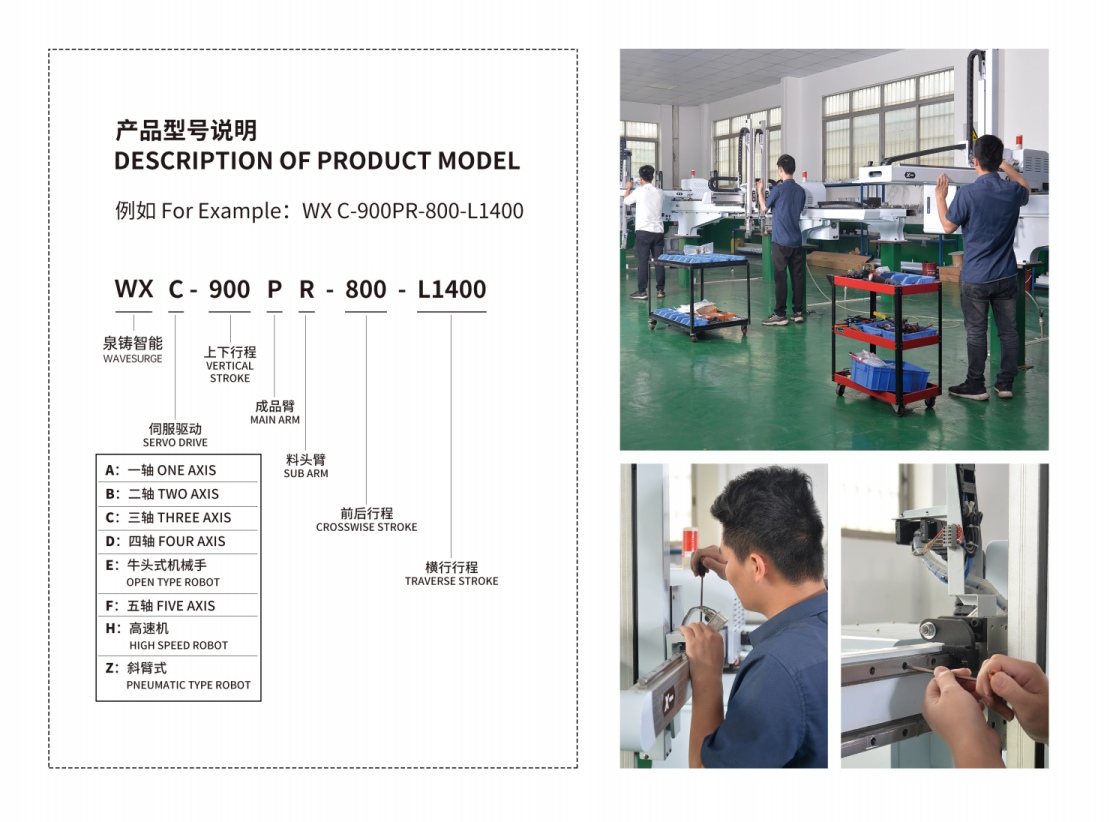

Machine Model

Machine Videos

Shipping
